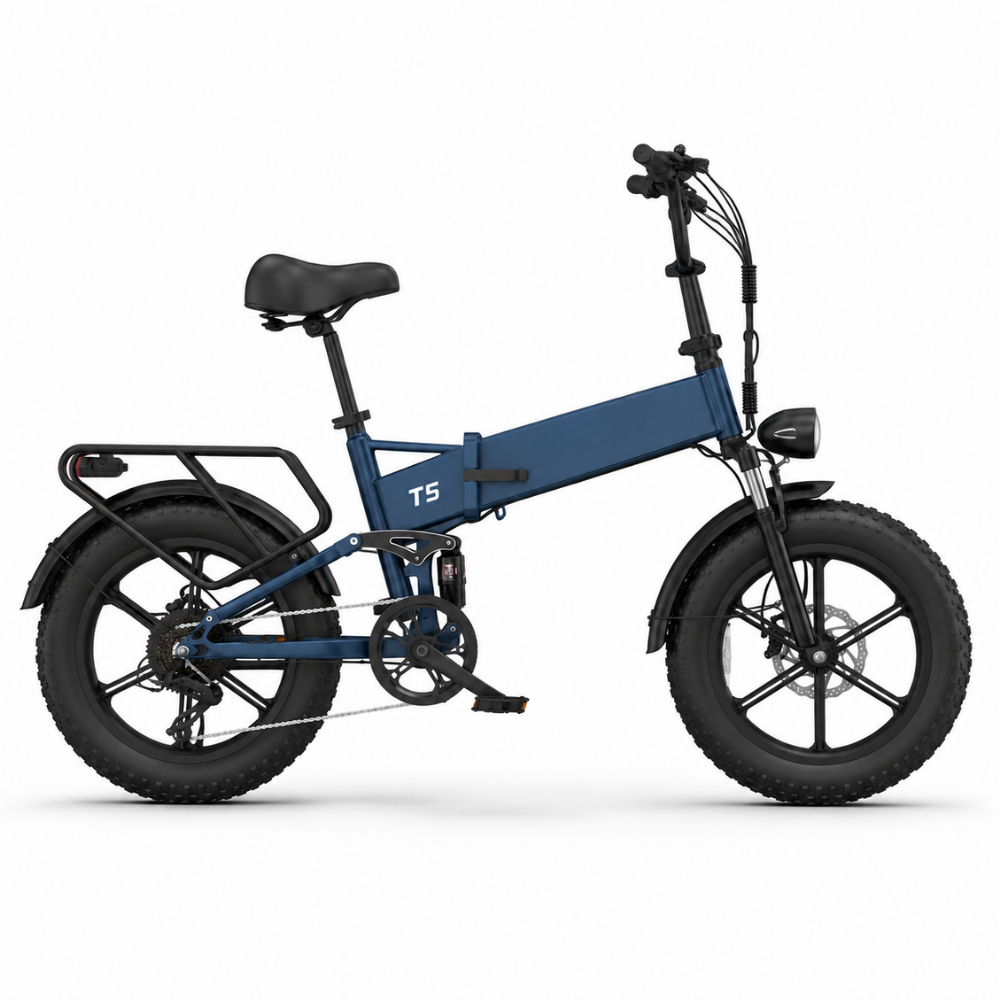

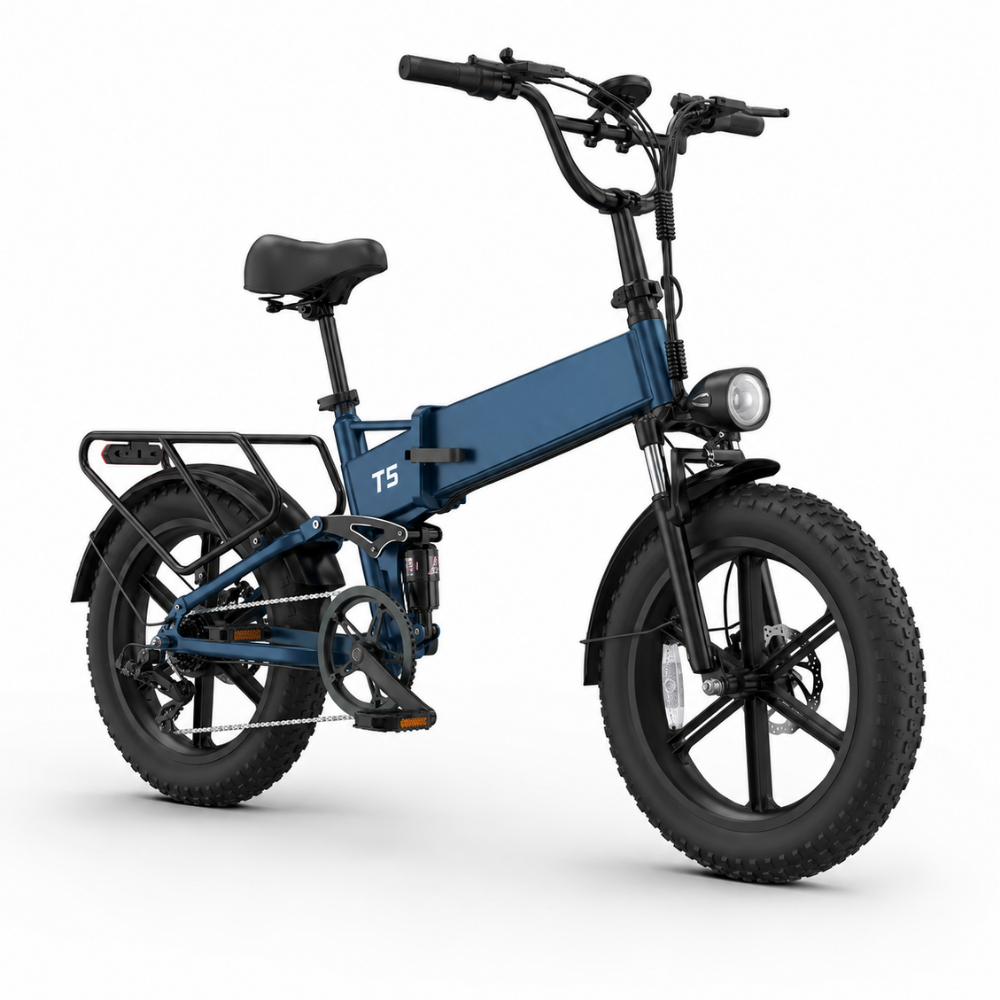

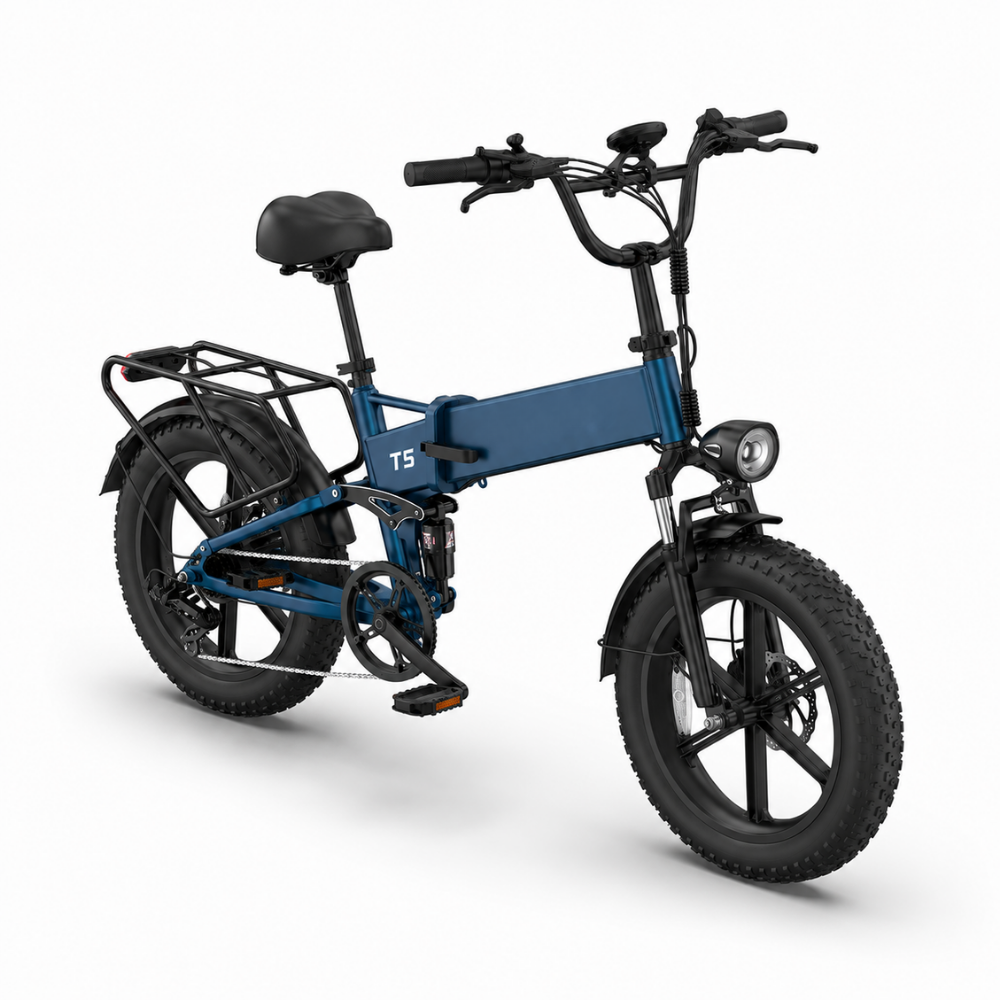

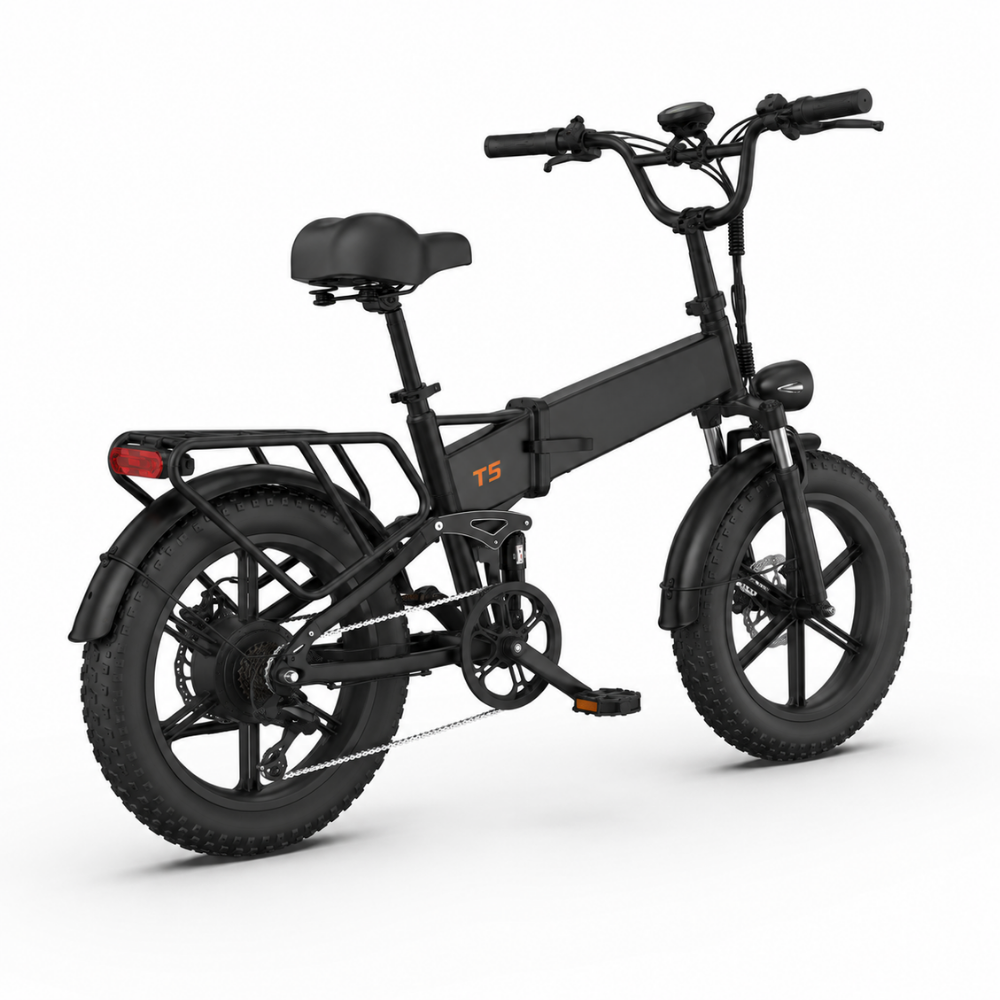

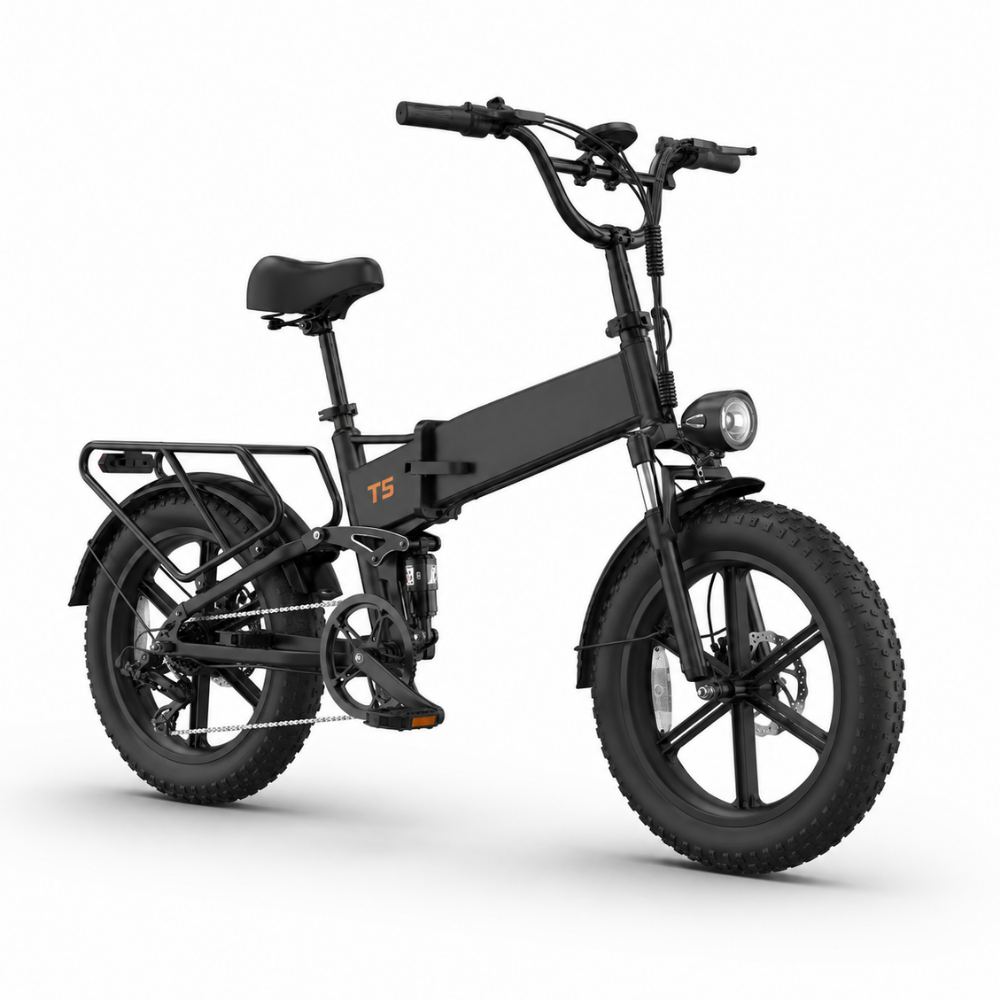

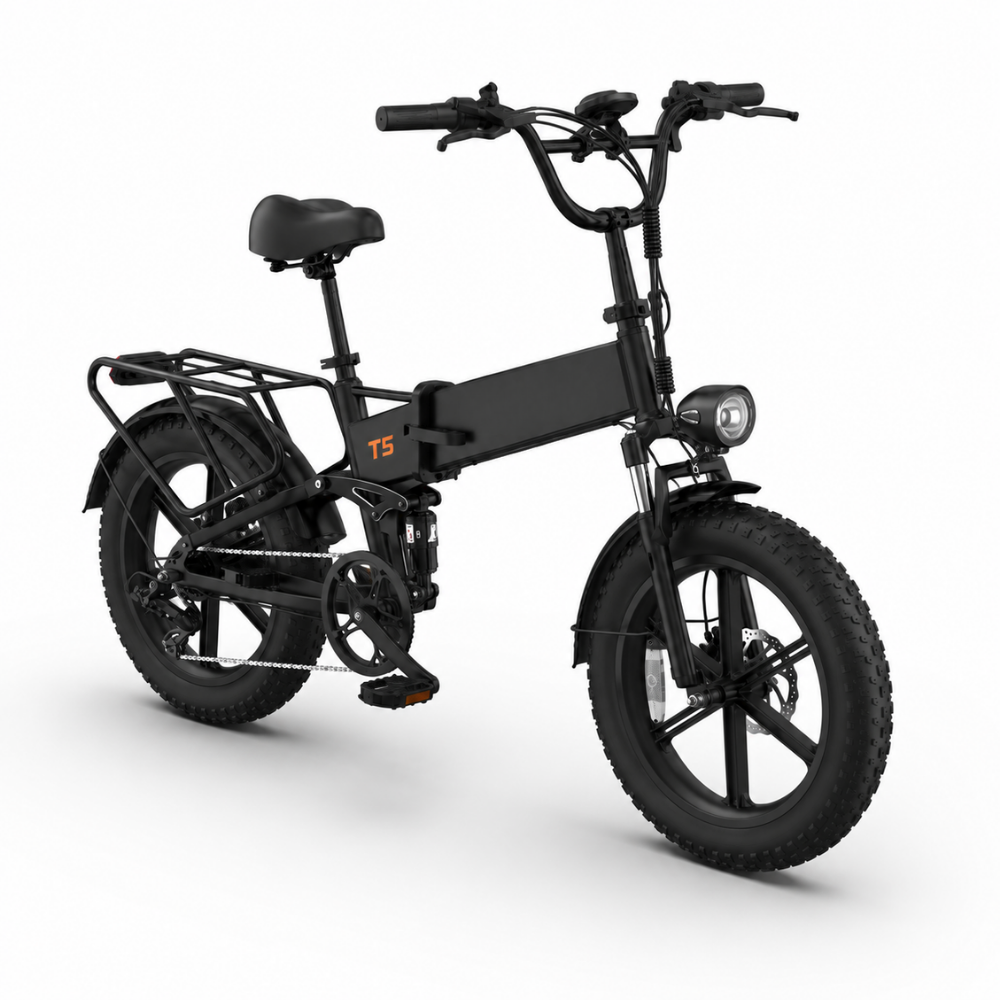

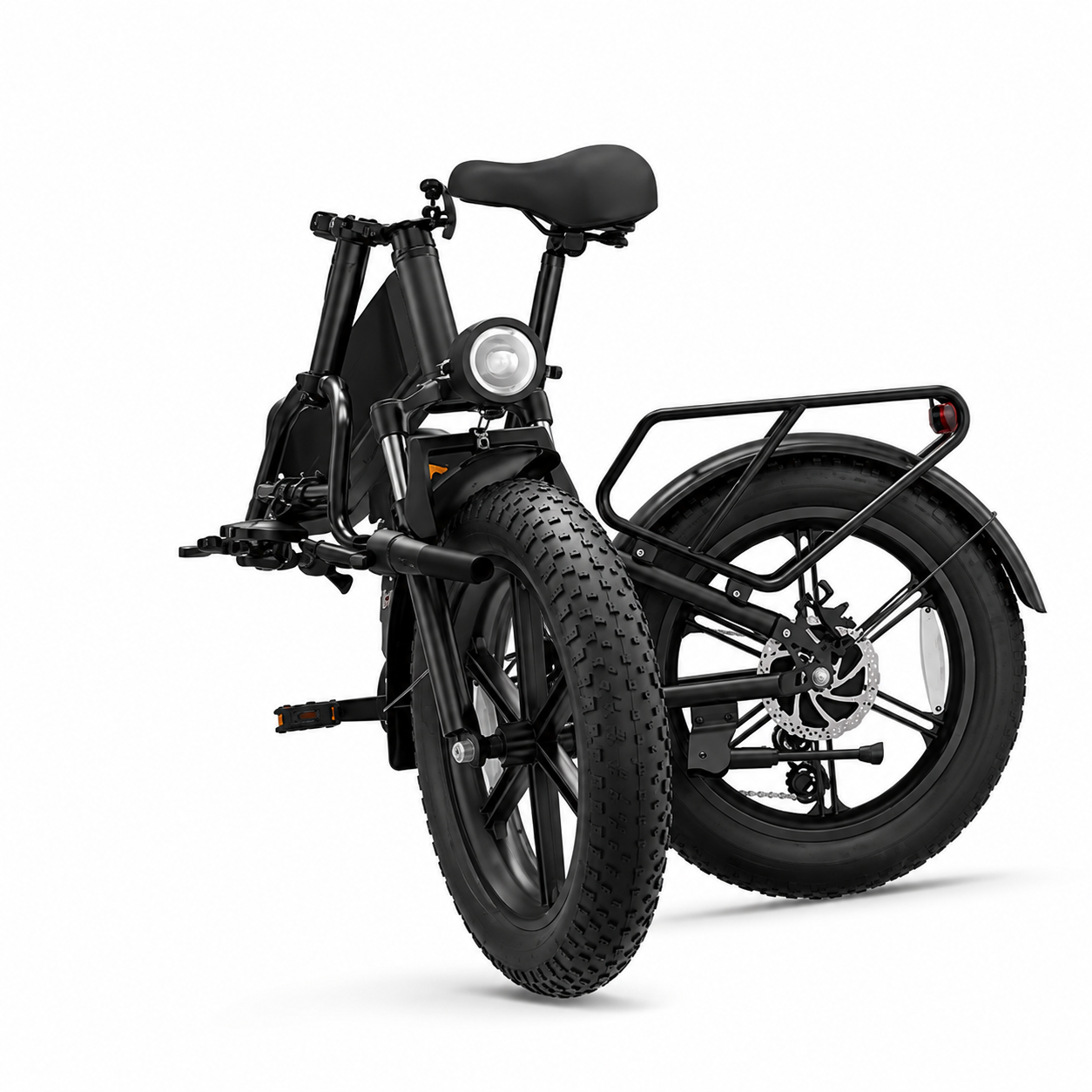

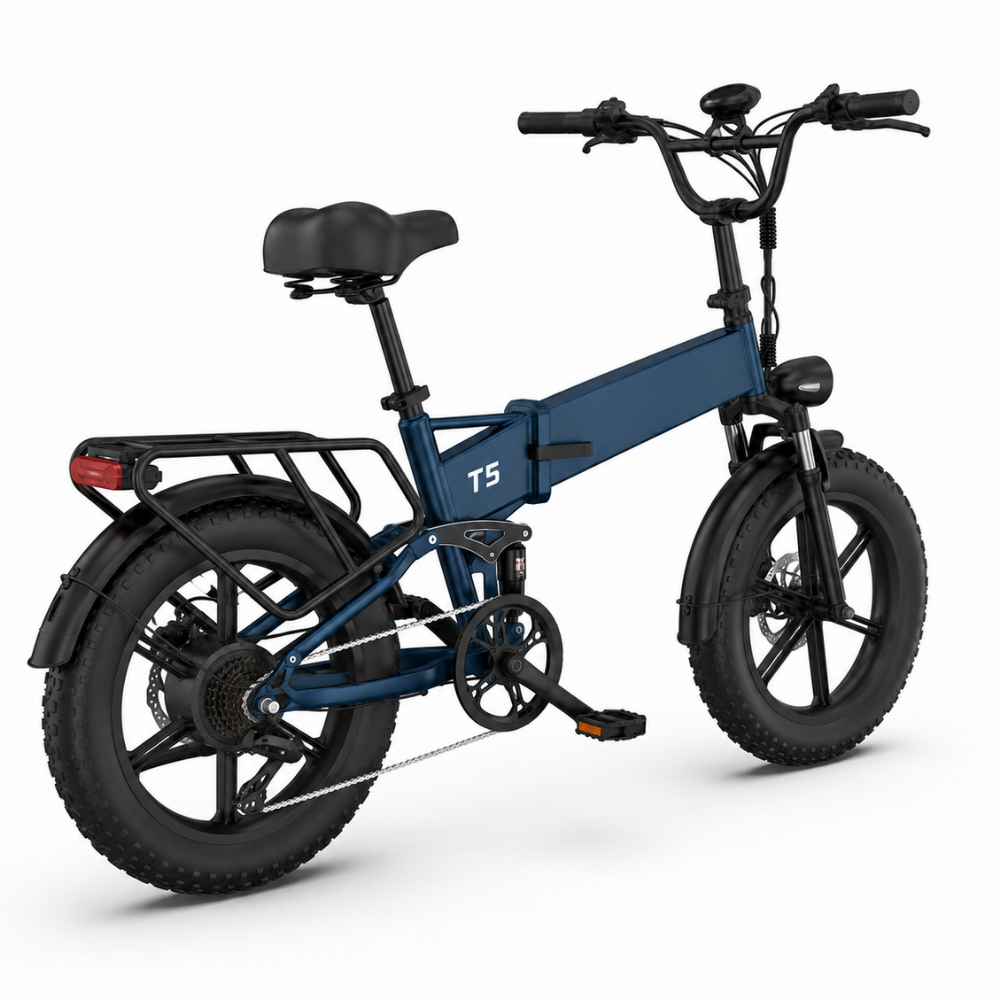

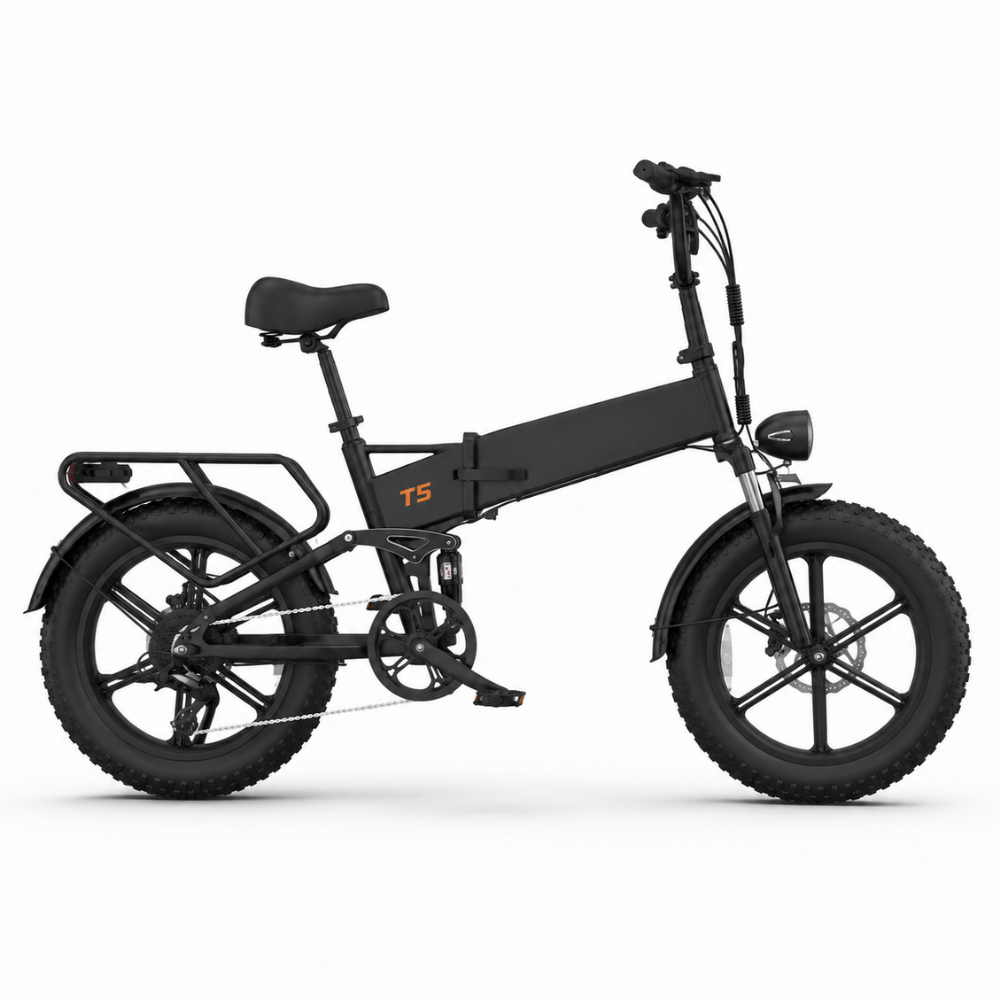

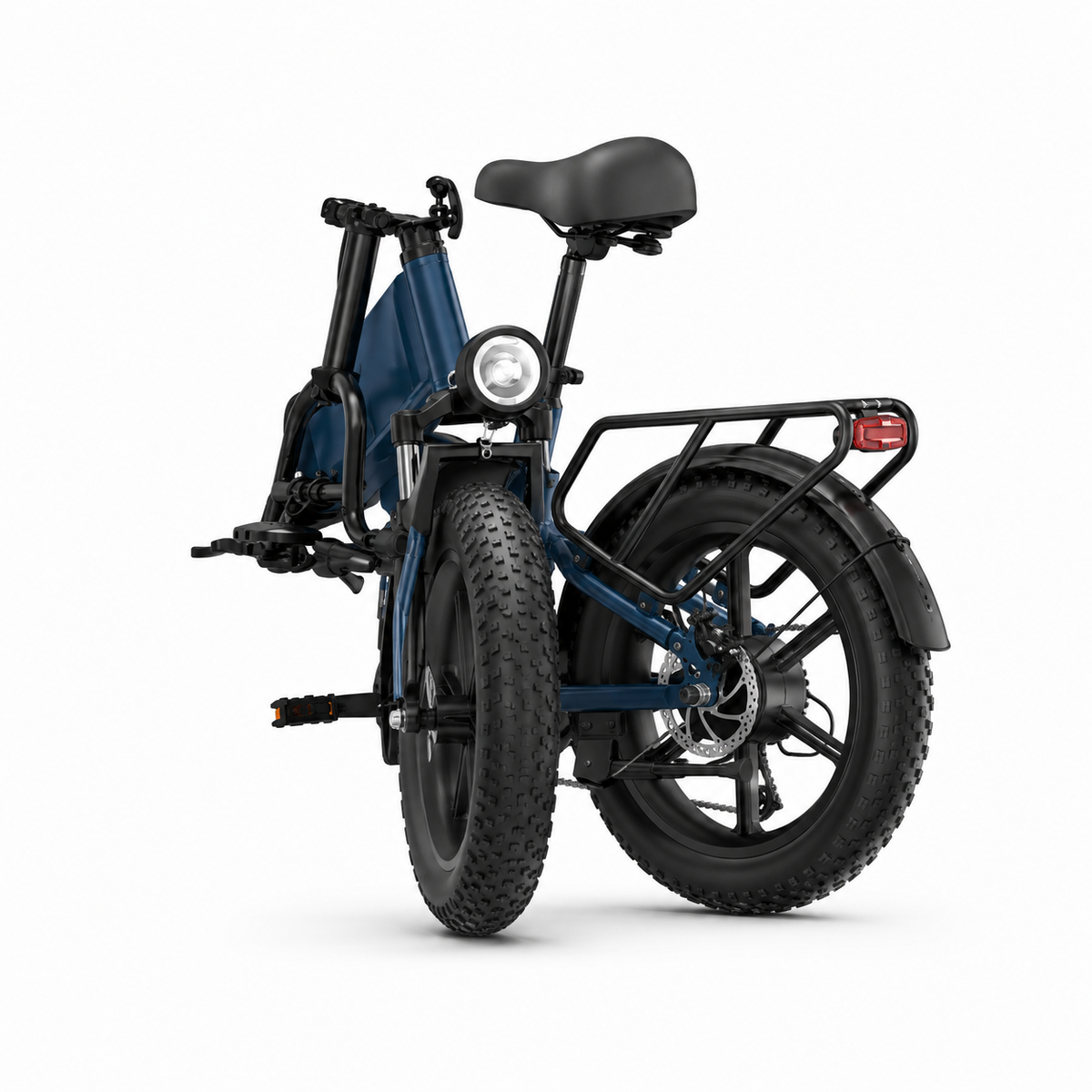

The VELKOOR T5 is a folding fat tyre electric bike with 20" x 4.0" tyres. Folds at the frame and the stem. Fat tyres absorb kerbs, gravel and potholes.
Motor and assistance
250 W nominal brushless hub motor. Assistance is limited to 25 km/h and cuts out above that speed. No throttle is fitted. The bike is supplied as a pedal-assist electric bicycle, compliant with EN 15194 and UK EAPC rules.
Battery
Removable 48V 13Ah lithium-ion battery (624Wh). It charges on or off the frame. Stated range: up to 65 km. Range is stated under test conditions: 75 kg rider, flat terrain, moderate pedal assist, tyres at the recommended pressure, 20 °C, no headwind. Your real-world range will differ with rider weight, gradient, temperature, tyre pressure and assist level.
Specification
- Motor: 250 W nominal, brushless hub
- Assistance cut-off: 25 km/h
- Throttle: none (pedal assist only)
- Battery: 48V 13Ah (624Wh), removable
- Stated range: up to 65 km (test conditions above)
- Frame: High-carbon steel
- Wheels: 20" — tyres 20" x 4.0"
- Drivetrain: Shimano 7-speed
- Brakes: Mechanical disc brakes (front and rear)
- Suspension: Front suspension fork
- Weight: 32 kg
- Standard: EN 15194 / CE
